產品展示

當前位置:首頁 > 產品展示 > 食品制氮機系列

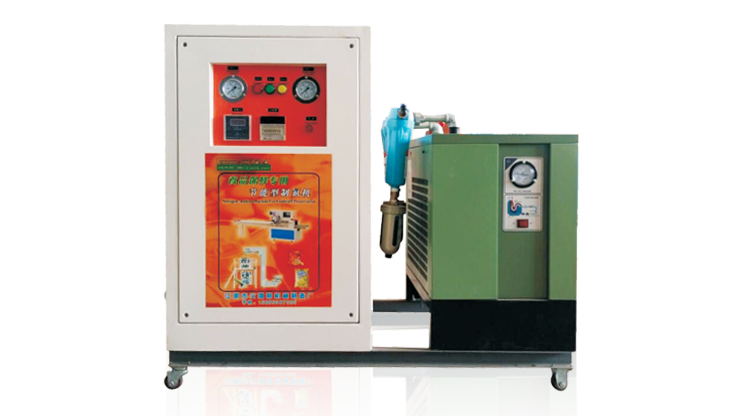

普通(第二代)制氮機(B型)

專業生產氣體分離設備、多功能氣調包 裝機、分散機、砂磨機、攪拌機及釜設備

主要性能和結構特點 / Main performance and structural characterisitics

該機型的運行狀態為“半自動運行”(即需 人為操作設備的啟停),空氣進口、氮?dú)獬隹谠O(shè)有 過濾調壓部件,氮?dú)饧兌?9.5 -99.9%氮?dú)夥治鰞x 在線檢測,制氮吸附塔交替運行排空時,加裝有快 速排空裝置,以達到制氮工藝快速脫附要求,延長 了工藝電磁閥的使用壽命。

Running state of the machine is "semi-automatic operation" (that is, the need for operating the start-stop of the equipment). Air inlet and nitrogen outlet are equipped with pressure regulating components. Nitrogen purity is monitored by analyzer on-line, by 99.5-99.9% unit. Alternately emptying system of nitrogen adsorption tower, with a rapid emptying device, in order to achieve the requirements of rapid stripping in nitrogen making process, prolongs the life of electromagnetic valve.

適用范圍 / Applicable

適用于食品醫藥行業:面包、月餅、蛋黃派、法式面包、餅干、巧克力、雪米餅、藥品、葡萄酒、茶葉以及各種農副產品的充氮保鮮包裝。

此款機型適合個體食品企業進行充氮包裝。建議使用節能系列食品保鮮制氮機。

Applicable to the food and pharmaceutical industry: the nitrogen-filled preservation and packaging of bread, moon cake, yolk pie, French bread, biscuits, chocolate, snow cake, pharmaceuticals, wine, tea and various agricultural and sideline products .

This machine is suitable for individual food companies in nitrogen-filled packaging. It is recommended to use energy-saving series of nitrogen making machine for food preservation.

技術參數 / Technical parameter

型號規格
Model
氮?dú)猱a(chǎn)量
Nitrogen
production Nm3/h
功率
Power
W
氮?dú)饧兌?br /> Nitrogrn
purity %
氣源壓力
Gas pressure
Mpa

產氮壓力
Pressure of production
nitrogen
Mpa

外形尺寸
Appearance size
L×W×H(mm)
SC-3B 碳鋼
Carbon steel
3 5 ≥99.5-99.9 0.8-1.0 0.1-0.65 1100×650×1100
不銹鋼
Stainless steel
注:可供一臺枕式包裝機充氮?dú)?,選配空壓機排量:0.4Nm3/min-10
Ps: It enables a pillow packaging machine to fill nitrogen and the matched air compressor capacity is 0.4 Nm3/min-10.
SC-5B 碳鋼
Carbon steel
3 5 ≥99.5-99.9 0.8-1.0 0.1-0.65 1100×650×1400
不銹鋼
Stainless steel
注:可供二臺枕式包裝機充氮?dú)饣蛞慌_(tái)大立式包裝機充氮?dú)猓x配空壓機排量:0.6Nm3/min-10
Ps: It enables 2 pillow packaging machines or a big vertical packaging machine to fill nitrogen and the matched air compressor capacity is 0.6Nm3/min-10

配套小型氮?dú)鈨?chǔ)罐:60L、高壓管3m、5m
