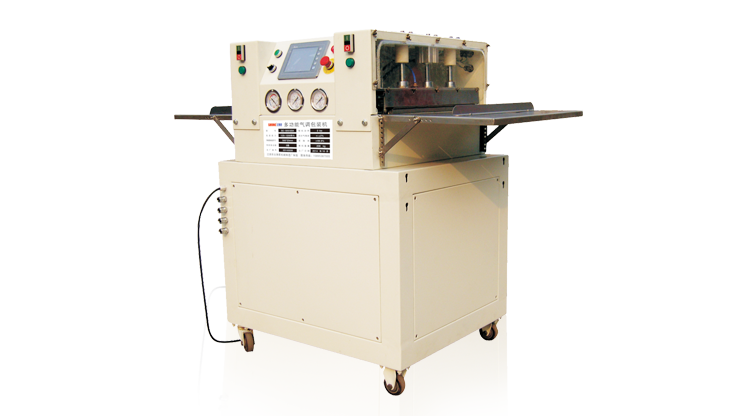

多功能氣調包裝機

專業(yè)生產氣體分離設備、多功能氣調包 裝機、分散機、砂磨機、攪拌機及釜設備

主要性能和結構特點 / Main performance and structural characterisitics

本機系雙室包裝機的升級換代產品,屬外抽式氣調包裝機。集普通、真空、氣調、大袋、小袋、長尺i袋、傾斜型兼用。 本機的整個二藝過程由PC程序控制器自動控制,通過設置PC程控器可按三種狀態(tài)來運行。即普通包裝、真空包裝、氣調包裝;故稱該機為多用型多功能氣州包裝機。

The machine, an upgraded version of packaging machine with double rooms, is a modified atmosphere packaging machine pumping outside. The machine can be used in ordinary, vacuum, big, small, long or oblique bags. The whole process of this machine is controlled automatically by the PC program controller. the PC program controller can be set to run in three states, that is, general packaging, vacuum packaging, modified atmosphere packaging. Therefore this machine is called as multi-functional modified atmosphere packaging machine.

適用范圍 / Applicable

適用于各種食品(如茶葉、果仁、瓜子、肉松等;油炸土豆片、膨化食品,各類鮮、熟禽肉類制品;各種水果蔬菜脆片、脫水蔬菜、新鮮野菜、新鮮水果蔬菜;新鮮食用菌類;各種鮮、熟海鮮水產類;月餅蛋糕類;干果蜜餞,各種泡菜、醬菜、腌臘制品、豆制品等)糧食及其制品,土特產、化學藥品、精密儀器及需要長期保存的各種產品進行氣調包裝。以達到隔氧防潮、防霉變、防蟲蛀的功能,能有效的延長包裝物品的保鮮保存期及方便倉儲和運輸。

Applicable to all kinds of food(such as tea, nuts, seeds, pork, etc.; fried potato chips, puffed food, all kinds of fresh and cooked meat products; all kinds of fruit and vegetable chips, dehydrated vegetables, fresh vegetables, fresh fruit and vegetables, fresh edible fungus; a variety of fresh, ripe seafood; the moon cake; dried fruit, all kinds of pickled vegetables, pickles, gases, bean products, etc.) rice and its products, local products,chemicals, precision instruments, and all kinds of product that need long-term preservation of packaging. This machine can effectively extend the life of the products and it is convenient for storage and transportation by isolating from the oxygen, moisture, mildew and moth.

SC-500/2SA多功能氣調包裝機主要技術參數 Technical parameter

1.工作室尺寸(Studio size):730×650×440mm
2.熱封條尺寸(Heat seal size):500×20mm
3.熱封條數(Heat seal number):2條
4.包裝能力(Packaging production):2-5次/分(2-5times/min)
5.包裝效率(Packing efficiency):1-4包/次(1-4bags/time)
6.功率(Power):1.2KW(220V/50HZ,60HZ)
7.氣體混合數:二種氣體(N2與CO2或CO2與O2)或四種氣體(N2、O2、CO2、其他氣體)
Number of mixed gas: two kinds of gas (N2, CO2 or CO2, O2 ) or four kinds of gas(N2, O2, CO2.and other gas)
8.氣體比例混合范圍(Range of mixed gas ratio):0~100%(體積百分百)(volume percentage)
9.氣體混合精度(Precision of mixed gas):≤±2%
10.氣源與氣源壓力:氣體鋼瓶,壓力為0.3~0.4MPa
Gas supply and the pressure of gas supply: gas cylinders The pressure is 0.3~0.4 Mpa
11.連續(xù)供氣量:0.08Mpa~0.3Mpa供氣壓力時流量2m3/hr
Continuous gas supply: 0.08Mpa-0.3Mpa. The flow of gas when pressured is 2m3/hr
12.供氣壓力與流量:可調節(jié) The pressure and flow of gas: adjustable
13.氣體置換率(Gas replacement rate):≥99.9%
14.外形尺寸(Appearance size):1480×650×1190(長length×寬width×高height)mm
15.重量(Weight):218kg

常用包裝材料 Common packagingmaterials

各種塑料復合薄膜或塑料鋁箔復合薄膜,如:尼龍/聚乙烯,尼龍/聚丙烯,尼龍/鍍鋁聚脂/聚乙烯,尼龍/純鋁箔/聚乙烯

All kinds of plastic composite film or plastic aluminum foil or composite film. Such as: PA/PE, PA/RCPP, PA/VMPET/PE, PA/AL/PE
